FEATURES

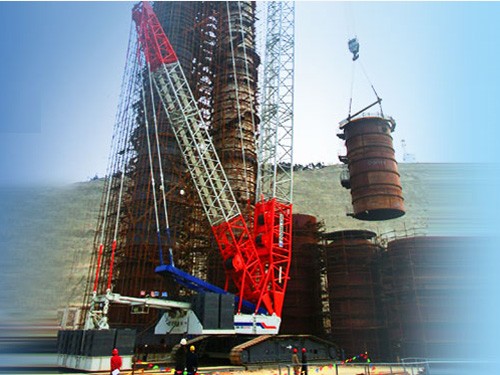

• With excellent lifting performance, it can be applied widely, for example, the construction of large petrochemical projects, wind power projects and large plants & venues;
• It can guarantee the safety for both human and machine by virtue of the complete safety equipment, the real-time monitoring of working parameters and center of gravity, the total rollover protection system, the pressure protection system and so on;
• It boasts stable quality, perfect details and human-centered design, with key parts and components imported;
• It introduces the modularized design with easy removal and installation, high transportation efficiency and low cost.
PARAMETERS
|
Item
|
Unit
|
Value
|
Remark
|
|
Maximum lifting moment
|
t×m
|
11000
|
|
|
Main boom working conditions(without superlift mechanism)
|
Maximum lifting weight ×radius
|
t×m
|
700×6
|
|
|
Length of heavy-duty main boom
|
m
|
24～84
|
|
|
Length of light-duty main boom
|
m
|
60～102
|
|
|
Main boom working conditions(with superlift mechanism)
|
Maximum lifting weight×Radius
|
t×m
|
800×12
|
|
|
Length of heavy-duty main boom
|
m
|
42～102
|
|
|
Length of light-duty main boom
|
m
|
90～138
|
|
|
Superlift mast
|
Length of superlift mast
|
m
|
36
|
|
|
Working condition with heavy-duty main boom and fixed jib (vessel hoisting)
|
Maximum lifting weight ×Radius
|
t×m
|
500/20
|
|
|
Jib installation angle
|
°
|
12、20
|
|
|
Length of jib
|
m
|
18
|
|
|
Installation length of jib and main boom
|
m
|
42～90
|
|
|
Working condition with tower jib (without superlift mechanism)
|
Maximum lifting weight ×Radius
|
t×m
|
254×16
|
|
|
Length of tower jib
|
m
|
30～90
|
|
|
Installation length of jib and main boom
|
m
|
42～60
|
|
|
Working angle of main boom
|
°
|
85、75、65
|
|
|
Stay bar of tower jib
|
Length of front stay bar
|
m
|
19
|
|
|
Length of rear stay bar
|
m
|
18
|
|
|
Working condition with tower jib (with superlift mechanism)
|
Maximum lifting weight ×Radius
|
t×m
|
400×20
|
|
|
Length of tower jib
|
m
|
30～90
|
|
|
Installation length of jib and main boom
|
m
|
42～90
|
|
|
Working angle of main boom
|
°
|
85、75、65
|
|
|
Main hoisting winch mechanism Ⅰ & Ⅱ
|
Single rope speed
|
m/min
|
0～128
|
|
|
Single rope tension
|
KN
|
180
|
|
