FEATURES

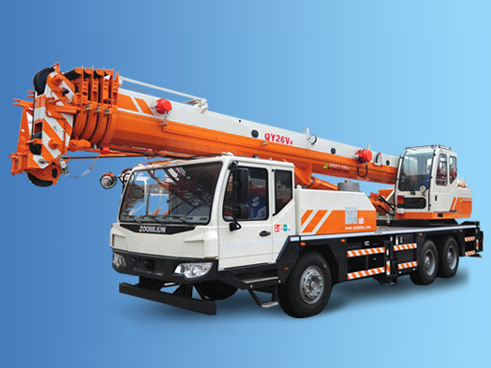

• A truck crane featuring full circleswinging, telescopic luffing jib and five-section boom;
• Three-axle dedicated chassis, broad vision, simple and generous decorations,6×4 drive;
• It adopts a load feedback hydraulic proportional directional valve andquadruple gear pump system, with such safety devices as overflow valve, balancevalve, hydraulic lock and brake valve equipped to prevent oilway overload andavoid accidents due to pipe fracture;
• Such safety devices as torque limiter and a complete lighting system areequipped to ensure safe and reliable operation, and facilitate operation atnight;
• The complete crane features an innovative design, with its body, line andtint beauty integrated.
PARAMETERS
|
Type
|
Ser. No.
|
Item
|
Unit
|
Value
|
|
Working performance
|
1
|
Max. rated lifting weight × working radius
|
kg.m
|
26000×3.0
|
|
2
|
Max. lifting torque of basic boom
|
kN.m
|
860
|
|
3
|
Max.lifting torque of longest main boom
|
kN.m
|
518
|
|
4
|
Max. lifting height of longest main boom
|
m
|
38.7
|
|
5
|
Max. lifting height of jib
|
m
|
46.58
|
|
Dimensions
|
6
|
Outline dimensions (L×W×H)
|
mm
|
12510×2500×3455
|
|
7
|
Distance between outriggers (longitudinal × transversal)
|
mm
|
5150×6100
|
|
8
|
Main boom length (completely retracted – completely extended)
|
m
|
10.3～38.5
|
|
9
|
Jib length
|
m
|
8
|
|
10
|
Main boom angle of elevation
|
°
|
-2～80
|
|
11
|
Swing range
|
|
360°continuously
|
|
Working speed
|
12
|
Max.speed of single rope on the drum of main winch
|
m/min
|
120
|
|
13
|
Boom extension time
|
s
|
80
|
|
14
|
Boom derricking up time
|
s
|
40
|
|
15
|
Swing speed
|
r/min
|
0～2.2
|
|
Mass
|
16
|
Complete vehicle kerb mass
|
kg
|
29400
|
|
17
|
Front axle load
|
kg
|
6370
|
|
18
|
Rear axle load
|
kg
|
22900
|
|
Traveling
|
19
|
Max. traveling speed
|
km/h
|
72
|
|
20
|
Max. gradeability
|
%
|
34
|
|
21
|
Min. turn radius
|
m
|
10
|
|
22
|
Min. ground clearance
|
mm
|
235
|
