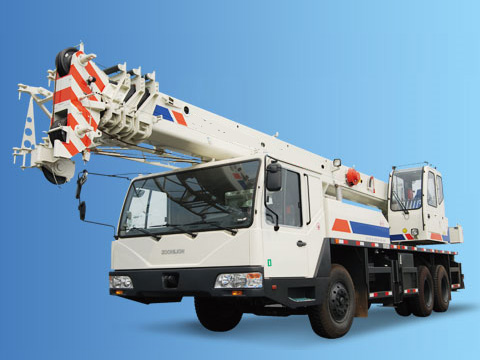

FEATURES
• Its novel hexagonal cross section structure features light dead weight and strong bearing capacity;
• Its hoisting, luffing, swing, telescopicing and other mechanisms adopt manual proportional control and hydraulic drive, featuring easy and flexible operation, stable and reliable work, as well as stepless speed regulation;
• Such safety devices as relief valve, balance valve, hydraulic lock and brake valve are equipped to prevent oilway overload and avoid accidents due to pipe fracture;
• It adopts the flow saturation resistance technology, with the flow irrelevant to the load, so that the combined movements could have the stability and synchronization effectively ensured;
• Three-axle dedicated chassis, broad vision, as well as luxurious and comfortable decorations;
• It adopts a FAST gearbox and a 6×4 drive plus easy and flexible hydraulic power steering;
• Such safety devices as torque limiter and height limit device, as well as a complete lighting system are equipped to ensure safe and reliable operation, and facilitate operation at night;
PARAMETERS
|
Type
|
Ser. No.
|
Item
|
Unit
|
Value
|
|
Working performance
|
1
|
Max. rated lifting weight × working radius
|
kg.m
|
16000×3.0
|
|
2
|
Max. lifting torque of basic boom
|
kN.m
|
710
|
|
3
|
Max.lifting torque of longest main boom
|
kN.m
|
408
|
|
4
|
Max. lifting height of longest main boom
|
m
|
31.08
|
|
5
|
Max. lifting height of jib
|
m
|
38.5
|
|
Dimensions
|
6
|
Outline dimensions (L×W×H)
|
mm
|
12050×2500×3400
|
|
7
|
Distance between outriggers (longitudinal × transversal)
|
mm
|
4950×5400
|
|
8
|
Main boom length (completely retracted – completely extended)
|
m
|
9.8～30.8
|
|
9
|
Jib length
|
m
|
7.5
|
|
10
|
Main boom angle of elevation
|
°
|
-2～80
|
|
11
|
Swing range
|
|
360°continuously
|
|
Working speed
|
12
|
Max.speed of single rope on the drum of main winch
|
m/min
|
120
|
|
13
|
Boom extension time
|
s
|
55
|
|
14
|
Boom derricking up time
|
s
|
38
|
|
15
|
Swing speed
|
r/min
|
0～2
|
|
Mass
|
16
|
Complete vehicle kerb mass
|
kg
|
22870
|
|
17
|
Front axle load
|
kg
|
6200
|
|
18
|
Rear axle load
|
kg
|
16800
|
|
Traveling
|
19
|
Max. traveling speed
|
km/h
|
75
|
|
20
|
Max. gradeability
|
%
|
35
|
|
21
|
Min. turn radius
|
m
|
20
|
|
22
|
Min. ground clearance
|
mm
|
250
|
